Trail Blade Boss

SELECT SIZE BELOW TO SEE ACTUAL TIRE IMAGE:

*Pictured tire may not be representative of all size configurations.

tire bar graph

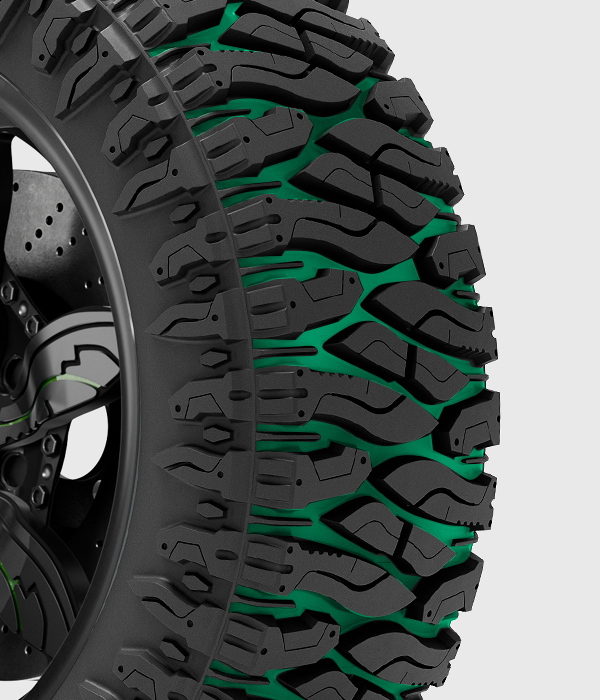

Atturo® Tire releases the fourth tire in its Trail Blade® series with the most intimidating tire design to date – the Trail Blade BOSS®. The tread is designed from the Quartermaster QSA-1 BOSS HOG knife, a blade made for heavy duty, hard core use. Alternating shoulder blocks follow the outline of the knife handle tread. The tread’s high void ratio provides superior grip across the varied terrain. Smaller center tread blocks are linked for stability from the high abrasion abuse of rocks.

specifications

  • 15 inch
    Atturo Item Number Size Speed/Load OverAll Diameter Inches Section Width Approved Rim Width Tread Depth 32nd/Inches Max PSI Max Load Single LBS Max Load Dual LBS
    TBBO-J53D5AFA 35x13.50R15LT 121Q 34.8 35 8.5 - 11.0 22 50 3197 - -
  • 17 inch
    Atturo Item Number Size Speed/Load OverAll Diameter Inches Section Width Approved Rim Width Tread Depth 32nd/Inches Max PSI Max Load Single LBS Max Load Dual LBS
    TBBO-J5QE7AFA 37x12.50R17LT 124Q 36.9 37 8.5 - 11.0 22 50 3525 - -
    TBBO-J53G7AFA 40x13.50R17LT 136Q 39.8 40 8.5 - 11.0 22 65 4938 - -
  • 18 inch
    Atturo Item Number Size Speed/Load OverAll Diameter Inches Section Width Approved Rim Width Tread Depth 32nd/Inches Max PSI Max Load Single LBS Max Load Dual LBS
    TBBO-J53E8AFA 37x13.50R18LT 128Q 36.8 37 8.5 - 11.0 22 65 3968 - -
  • 20 inch
    Atturo Item Number Size Speed/Load OverAll Diameter Inches Section Width Approved Rim Width Tread Depth 32nd/Inches Max PSI Max Load Single LBS Max Load Dual LBS
    TBBO-J5SK0AFA LT375/45R20 126Q 33.5 375 12.0 - 14.0 22 65 3748 - -
    TBBO-J5NH0AFA LT325/60R20 126/123Q 35.6 325 9.0 - 12.0 22.2 65 3750 3415
    TBBO-J5SI0AFA LT375/55R20 128Q 36.5 375 10.0 - 13.0 22 50 3968 - -
    TBBO-J56F0AFA 38x14.50R20LT 124Q 37.8 38 10.0 - 12.0 22 50 3525 - -
  • 22 inch
    Atturo Item Number Size Speed/Load OverAll Diameter Inches Section Width Approved Rim Width Tread Depth 32nd/Inches Max PSI Max Load Single LBS Max Load Dual LBS
    TBBO-J56G0AFA 40x14.50R20LT 129Q 39.8 40 10.0 - 12.0 22 50 4078 - -
    TBBO-J56GBAFA 40x14.50R22LT 132Q 39.8 40 10.0 - 12.0 22 65 4409 - -
    TBBO-J5RLBAFA LT355/40R22 122Q 34.6 355 12.0 - 14.0 22 80 3750 - -
    TBBO-J5SKBAFA LT375/45R22 128Q 35.3 375 12.0 - 14.0 22 80 3970 - -
  • 24 inch
    Atturo Item Number Size Speed/Load OverAll Diameter Inches Section Width Approved Rim Width Tread Depth 32nd/Inches Max PSI Max Load Single LBS Max Load Dual LBS
    TBBO-J53FDAFA 38x13.5R24 123Q 37.8 38 8.5 - 11.0 21 65 3415 - -
    TBBO-J5SLDAFA LT375/40R24 128Q 35.8 375 12.5 - 15.0 22 80 3748 - -
    TBBO-J56GDAFA 40x14.50R24LT 128Q 39.8 40 10.0 - 12.0 21 65 3968 - -
    TBBO-J52IDAFA 42x15.50R24LT 130Q 41.8 42 11.0 - 14.0 22 50 4189 - -

technology

tire image with detailed description

design

Trail Blade Boss Design Features:

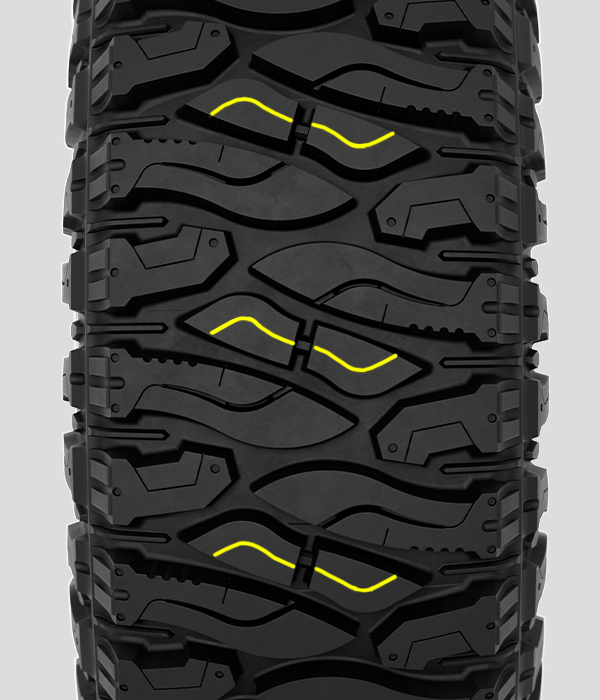

  • The center tread incorporates the ‘kurki’ style knife blade as the oversized tread lug. The deep channel in this massive tread block serves to pull through deep slop and force debris from the center of the tread.

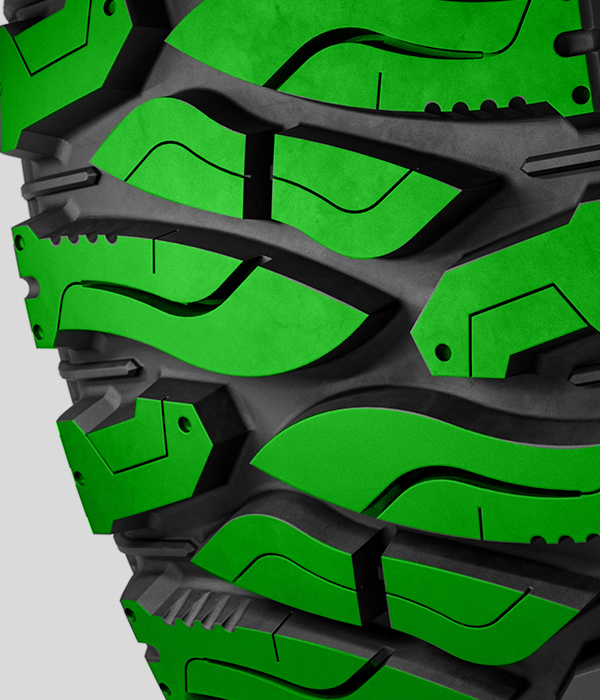

  • The relatively smaller center tread blocks are linked for stability from the high abrasion abuse of rocks.

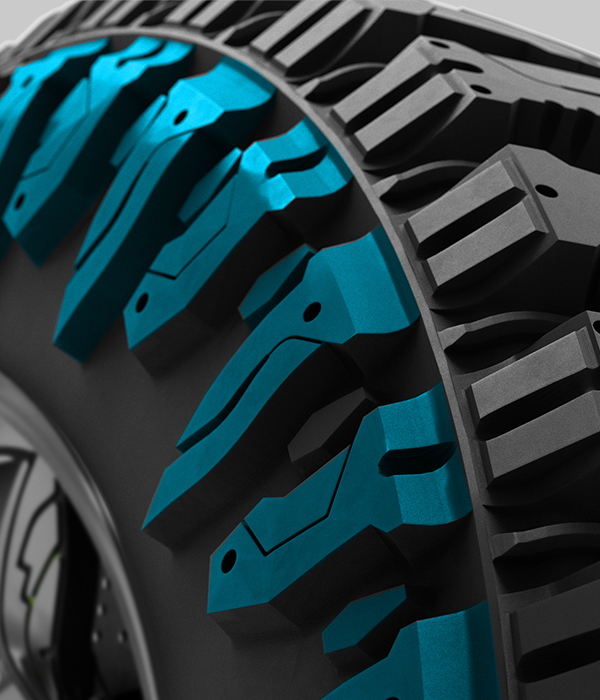

  • The sidewalls of the BOSS feature the same blade and handle shapes as the tread. These large lugs provide traction in deep mud, grab loose rocks and protect the sidewall from protrusions on the trail.
  • Beneath the tread, lies a 3 ply sidewall for load capacity and protection.

Trail Blade BOSS
A BIG tire with a BIG attitude, the BOSS has earned its title.
• 17% better traction in deep mud
• 10% better in gravel
• 9% better in sand
*Based on NATC testing against the Trail Blade® M/T
