Description
For when 10ths of a second count, the AZ850DR has the chops to get you to the finish! This D.O.T. compliant Drag Radial tire is ready to leave the competition in the dust.
Sizes & Specs

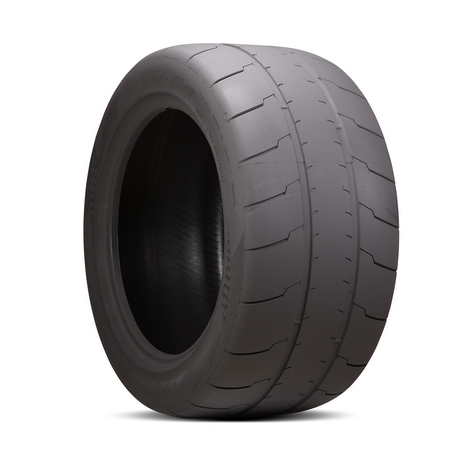

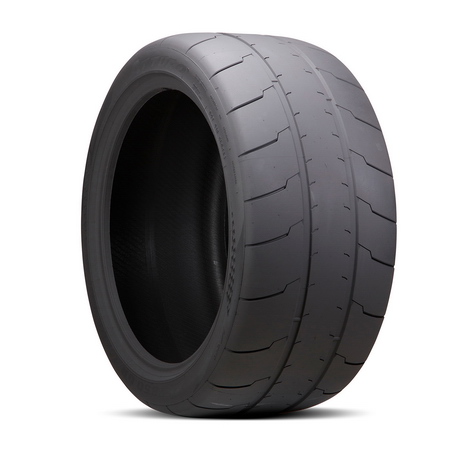

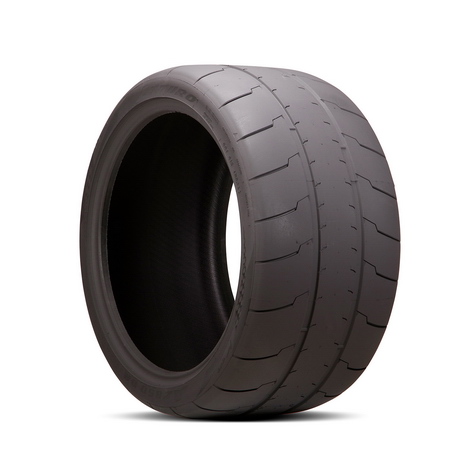

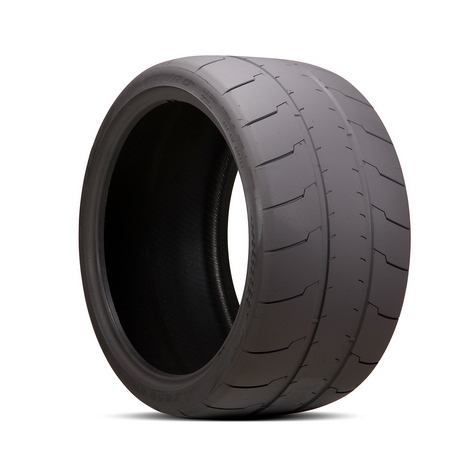

*Pictured tire may not be representative of all size configurations.
28.7
10.9
26.8
11.4
26.9
11.4
26.9
11.4
26.3
12.3
27.2
12.3
27.9
12.3
27.5
12.6
28.7
12.6
27.9
12.6
28.0
13.5
Additional information
| size | 275/40R20, 285/30R20, 285/35R19, 285/35R20, 305/30R19, 305/30R20, 305/35R20, 315/30R20, 315/35R20, 315/40R18, 335/30R20 |
|---|---|
| tire width | |
| aspect ratio | |
| construction type | |
| wheel diameter | |
| speed rating load index | 102Y XL, 103Y XL, 104Y XL, 106Y XL, 107Y XL, 108Y XL, 110Y XL, 99Y XL |
| ply rating | |
| overall diameter mm | |
| overall diameter inches | |
| section width mm | |
| section width inches | |
| measuring rim | |
| approved rim width | 10.0~12.0, 10.5~11.5, 10.5~12.5, 11.5~12.5, 9.0~11.0, 9.5~10.5, 9.5~11.0 |
| tread depth mm | |
| tread depth 1/32 inches | |
| max psi | |
| max kpa | |
| max load single kg | |
| max load single lbs | |
| max load dual kg | |
| max load dual lbs | |
| UTQG | |
| variation image | https://atturo.com/wp-content/uploads/2022/12/AZ850DR-angle-425×425-1.png |
275/40R20
- load index / speed rating106Y XL
- overall diameter inches28.7
- section width inches10.9
- approved rim width9.0~11.0
- max psi50
- max load single lbs2094
- max load dual lbs-
285/30R20
- load index / speed rating99Y XL
- overall diameter inches26.8
- section width inches11.4
- approved rim width9.5~10.5
- max psi50
- max load single lbs1709
- max load dual lbs-
285/35R19
- load index / speed rating103Y XL
- overall diameter inches26.9
- section width inches11.4
- approved rim width9.5~11.0
- max psi50
- max load single lbs1929
- max load dual lbs-
285/35R20
- load index / speed rating104Y XL
- overall diameter inches26.9
- section width inches11.4
- approved rim width9.5~11.0
- max psi50
- max load single lbs1984
- max load dual lbs-
305/30R19
- load index / speed rating102Y XL
- overall diameter inches26.3
- section width inches12.3
- approved rim width10.5~11.5
- max psi50
- max load single lbs1874
- max load dual lbs-
305/30R20
- load index / speed rating103Y XL
- overall diameter inches27.2
- section width inches12.3
- approved rim width10.5~11.5
- max psi50
- max load single lbs1929
- max load dual lbs-
305/35R20
- load index / speed rating107Y XL
- overall diameter inches27.9
- section width inches12.3
- approved rim width10.0~12.0
- max psi50
- max load single lbs2149
- max load dual lbs-
315/30R20
- load index / speed rating104Y XL
- overall diameter inches27.5
- section width inches12.6
- approved rim width10.5~11.5
- max psi50
- max load single lbs1984
- max load dual lbs-
315/35R20
- load index / speed rating110Y XL
- overall diameter inches28.7
- section width inches12.6
- approved rim width10.5~12.5
- max psi50
- max load single lbs2337
- max load dual lbs-
315/40R18
- load index / speed rating108Y XL
- overall diameter inches27.9
- section width inches12.6
- approved rim width10.5~12.5
- max psi50
- max load single lbs2205
- max load dual lbs-
335/30R20
- load index / speed rating108Y XL
- overall diameter inches28.0
- section width inches13.5
- approved rim width11.5~12.5
- max psi50
- max load single lbs2205
- max load dual lbs-
Related products
-
AZ 610
Product size , , , , , , , , , , , , , , , , , , , , , Quick ViewRead more -
AZ 800
Product size , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , $0.00 Quick ViewSelect options -
AZ 850
Product size , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , $0.00 Quick ViewSelect options
Design
EXTRA-WIDE CENTER STABILIZES
Delivers improved, handling, and “on center” feel at race speeds.
EXTRA-WIDE CENTER STABILIZES
Delivers improved, handling, and “on center” feel at race speeds.
DUAL WIDE CHANNELS QUIETS
Reduces tire noise both on the road and on the drag strip.
DUAL WIDE CHANNELS QUIETS
Reduces tire noise both on the road and on the drag strip.
DIRECTIONAL SHOULDER GRIPS
Generates immediate launching traction with the help of an extra sticky compound.
DIRECTIONAL SHOULDER GRIPS
Generates immediate launching traction with the help of an extra sticky compound.
